DIN tube · metric

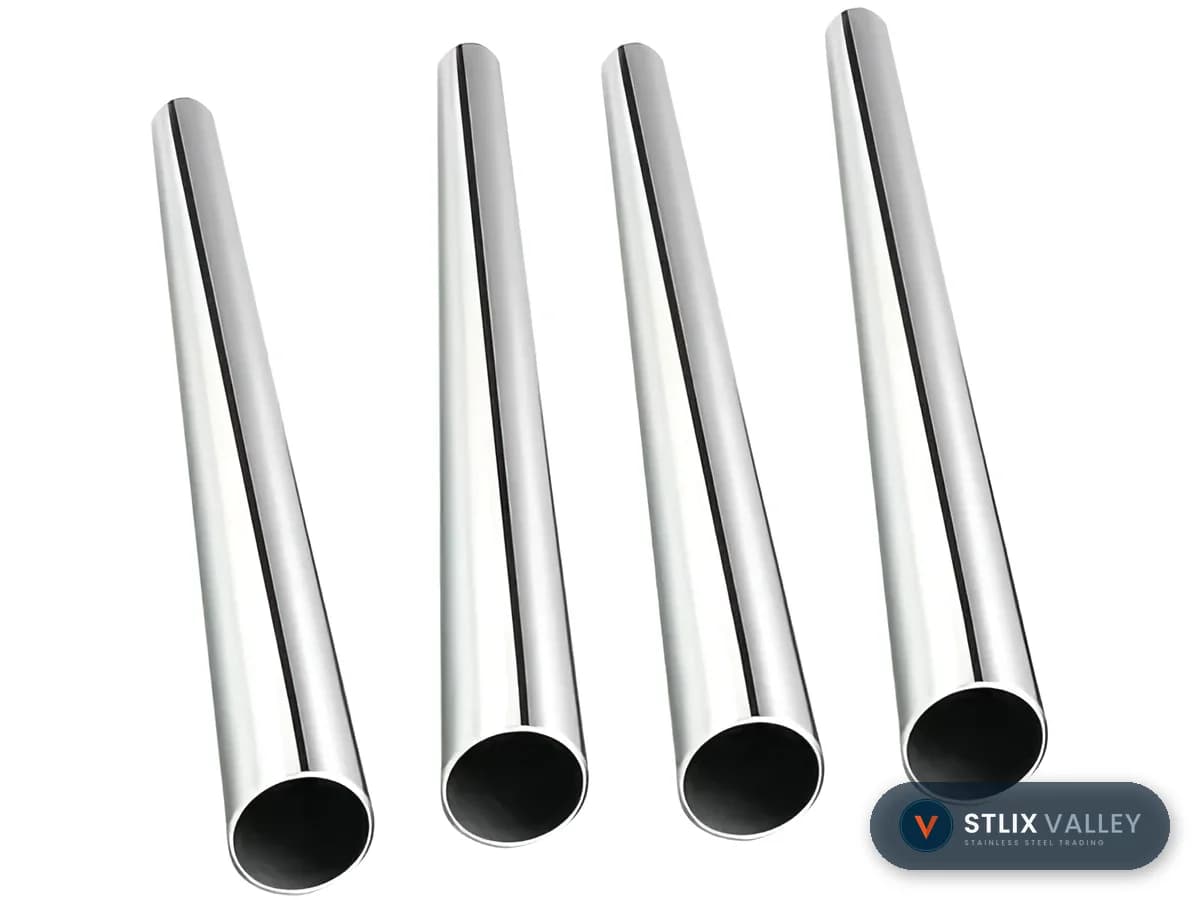

Stainless Tube DIN 11850

Series 2 · DN10 to DN150 · 304L and 316L

✓ Same-day dispatch from stock
✓ Delivery to every governorate
✓ Mill certificate with every shipment

DIN tube is metric sanitary tube to German DIN 11850, standard on European dairy and food equipment. Its OD differs from inch tube (A270), so fittings are not interchangeable. We supply the common series 2 in 304L and 316L.

DIN or inch?

Check the equipment: European machines are mostly DIN, American and Chinese mostly inch. Measure the existing OD and compare with both tables.

DIN 11850 series 2 tube sizes

OD and wall in mm; theoretical weight in kg/m.

DN	OD mm	Wall mm	kg/m
DN10	13	1.5	0.43
DN15	19	1.5	0.65
DN20	23	1.5	0.80
DN25	29	1.5	1.03
DN32	35	1.5	1.25
DN40	41	1.5	1.48
DN50	53	1.5	1.92
DN65	70	2.0	3.39
DN80	85	2.0	4.14
DN100	104	2.0	5.08
DN125	129	2.0	6.33
DN150	154	2.0	7.57

Weigh your order in the calculator →

Available products

SS304 Sanitary Tube →SS316 Sanitary Tube →

FAQ

Do you have DIN fittings?+

Yes — elbows, tees, clamps and valves in matching DIN sizes.

Do you supply a mill certificate?+

Yes — every lot ships with its MTC (chemistry, mechanical properties, heat number); grade verification with a metal analyser on request.

Do you deliver across Egypt?+

Yes — in-stock orders ship the same day to every governorate, and we export to the Gulf and Africa.
